C61 & R91

Orbiter

Apex





Upgrade for Orbiter*
Gamma Cameras with
IM512P/E

PDF Brochure

PPS Presentation

 New System Features

  • ALL DOT BIN boards removed. DOT terminal removed. All DOT terminal tasks are now done in the IM512P/E.

  • Detector energy and linearity correction boards not used anymore.

  • Less boards, more reliability.

  • Less power consumption, less heat generated.

  • New motion controller. New detector controller. New IM512PE acquisition & processing software.

  • On the fly energy, linearity, uniformity corrections done by acquisition software.

  • Real time isotope spectrum display.

  • Intrinsic and user uniformity correction maps for any isotope-collimator pair.

  • Better linearity & uniformity specifications.

  • Last generation USB V2 Acquisition Interface.

  • PC with last generation processor + Windows**.

  • Easy to maintain and upgrade.

Specifications


Original
IM512P/E Upgrade
Intrinsic Resolution FWHM UFOV [mm]
3.94
3.92
Intrinsic Resolution FWTM UFOV [mm]
7.52
7.39
Absolute linearity UFOV [mm]
0.9
< 0.5 (0.35 typ.)
Absolute linearity CFOV [mm]
0.5
< 0.4 (0.30 typ.)

Integral uniformity UFOV [%]
4.3
< 2.5 (1.6 typ.)

Differential uniformity UFOV [%]
3.0
< 2.0 (1,4 typ.)
Maximum raw count rate [kcps]
> 200
> 200

Multiple window registration [mm]
< 2.0
< 2.0

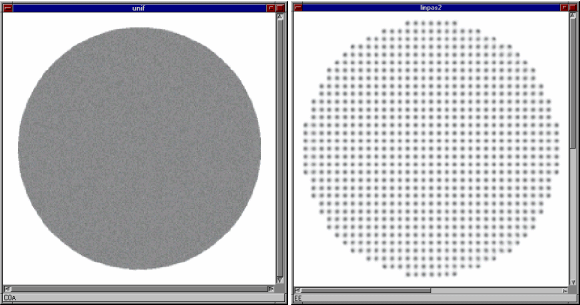

Uniformity                                      Linearity

 Connectivity

  • To and from most of current systems via DICOM.

  • Via Interfile to and from systems with this option implemented.

  • Exported graphic formats: PCX, JPG, AVI.

  • Can convert local and imported cine displays into standard AVI files to be seen in any Windows** based computer.

  • Remote help desk & service via integrated VNC® with file transfer.



_____________________

* Orbiter is a trademark of Siemens Medical Systems Inc.
**Windows is a registered trademark of Microsoft Corporation.
The other trademarks or registered trademarks mentioned are property of their respective owners.
